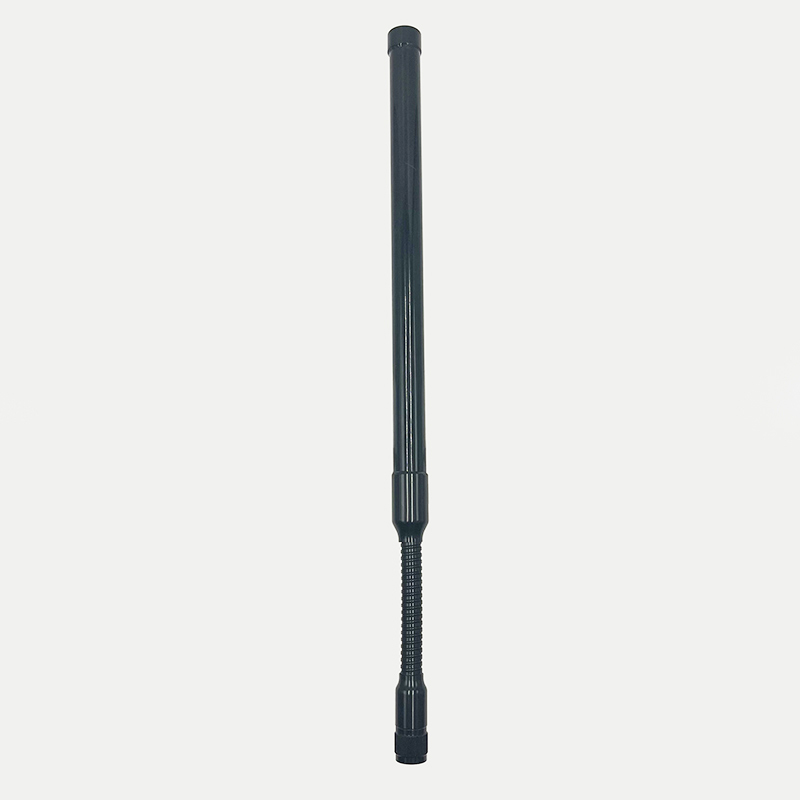

4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm

4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11908-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

4dBi SMA male gooseneck antenna

,

2300-2700MHz omnidirectional antenna

,

waterproof SMA male antenna

Frequency:
2300-2700MHz
VSWR:
<2.0
Peak Gain:
4dBi
Impedance:
50
Frequency:
2300-2700MHz
VSWR:
<2.0
Peak Gain:
4dBi
Impedance:
50
Description
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm

1. Specification

A. Electrical Characteristics

Frequency 2300-2700MHz
VSWR < 2.0
Efficiency ≈73%
Peak Gain 4dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 30±5°
T90(H) roundness ±0.5
Max Power 50W
B. Material & Mechanical
Connector Type N-J
Dimension Φ16*350±3mm
Weight 0.13Kg
Radome material Fiberglass (Black)

C. Environmental

Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 0

2.2  Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
2300 4.2 76.8
2350 3.6 72.4
2400 3.8 72.9
2450 3.9 72.7
2500 4.0 75.0
2550 3.5 68.2
2600 3.9 69.6
2650 4.2 75.8
2700 3.8 72.1


2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
2300MHz 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 1 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 2 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 3
2500MHz 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 4 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 5 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 6
2700MHz 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 7 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 8 4dBi SMA Male Gooseneck Antenna 2300-2700MHz 50 Ohm 9
