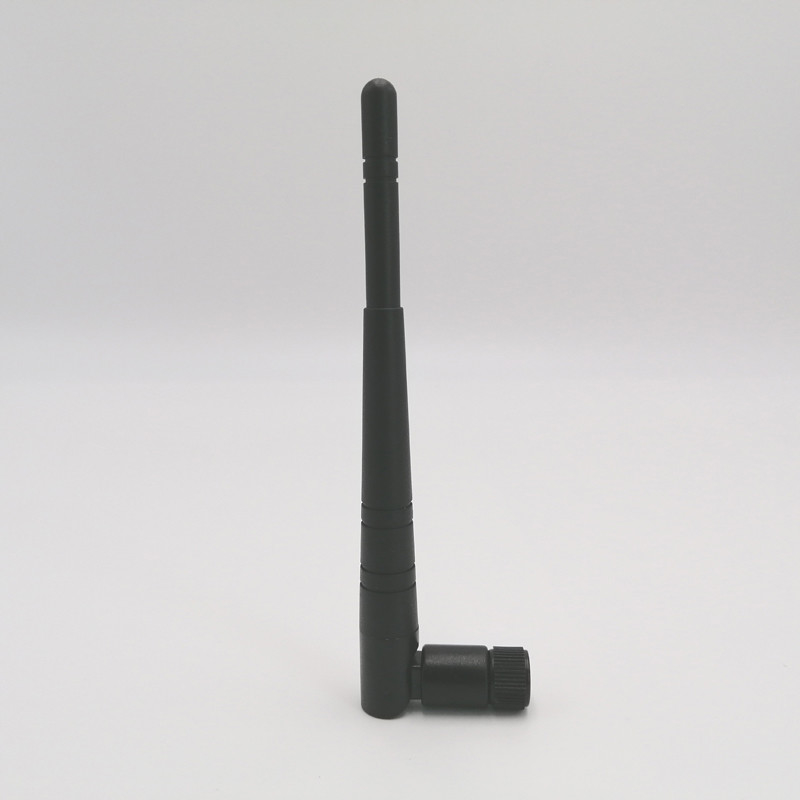

Name: 2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10460-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10460-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              2.4G omnidirectional router, 5.8G omnidirectional router, 2.4G  glue stick antenna


Frequency:	2400-2500/5150-5850M	VSWR:	<2
Peak Gain:	4dBi	Impedance:	50

Frequency:	2400-2500/5150-5850M
VSWR:	<2
Peak Gain:	4dBi
Impedance:	50

Description

2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna

2.4G5.8G WIFI 157mm omnidirectional router external folding glue stick antenna

1. Specification

A. Electrical Characteristics
Frequency	2400-2500/5150-5850MHz
Impedance	50 Ohm
S.W.R.	<2
Gain	4dBi
Efficiency	≈70%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	60°
B. Material & Mechanical Characteristics
Connector Type	SMA-J or RP-SMA-J
Dimension	Φ13*157mm
Weight	0.015Kg
Radome material	PBT+PC
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85˚C
Storage Temperature	- 40 ˚C ~ + 85˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 5.8G WIFI 157mm Omnidirectional Router External Folding Glue Stick Antenna 0

2.2 Total Efficiency & Gain:

Frequency (MHz)	2400.0	2410.0	2420.0	2430.0	2440.0	2450.0	2460.0	2470.0	2480.0	2490.0	2500.0
Gain (dBi)	2.71	2.48	2.13	2.00	2.10	2.42	2.48	2.39	2.28	2.35	2.49
Efficiency (%)	86.03	83.37	77.70	75.36	75.74	80.76	81.70	78.67	75.47	76.24	78.28

Frequency (MHz)	5150	5200	5250	5300	5350	5400	5450	5500	5550	5600	5650	5700	5750	5800	5850
Gain (dBi)	3.03	2.86	3.15	3.45	3.43	3.73	4.03	4.11	4.05	3.86	3.86	3.84	3.67	3.93	3.86
Efficiency (%)	61.18	56.90	62.00	68.83	65.08	66.87	67.73	66.93	66.77	66.85	68.37	69.07	67.35	69.06	69.06

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
2400MHz
2450MHz
2500MHz
5150MHz
5500MHz
5850MHz
