Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna

Name: Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-11120-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11120-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              gps directional antenna, passive directional antenna, 4dBi directional antenna


Frequency:	1561/1575MHz	VSWR:	<2.0
Peak Gain:	4dBi	Impedance:	50

Frequency:	1561/1575MHz
VSWR:	<2.0
Peak Gain:	4dBi
Impedance:	50

Description

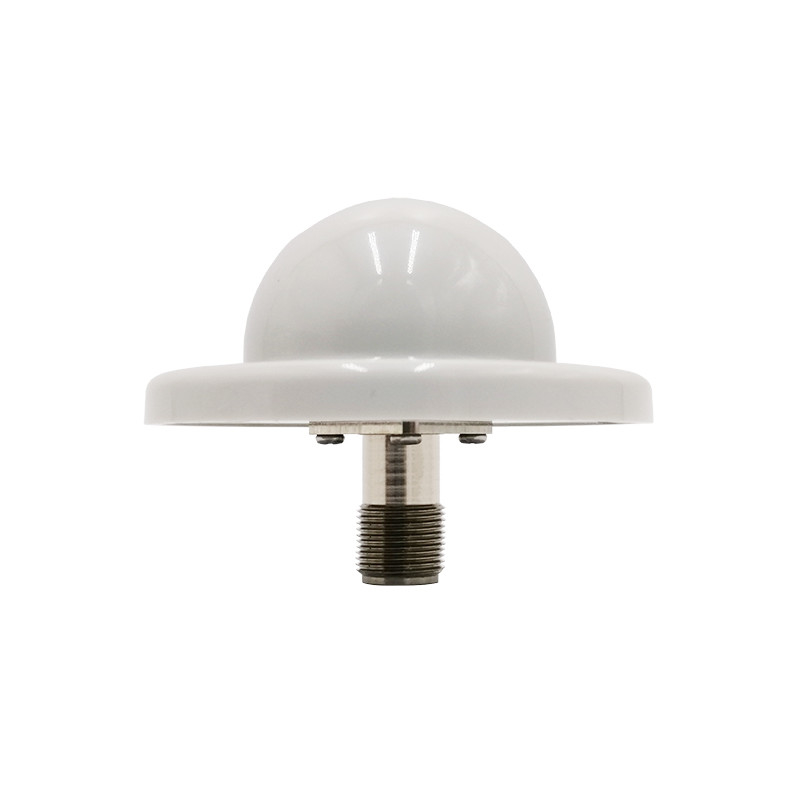

Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna

Beidou GPS 1561-1575M 4dBi dual mode passive waterproof directional antenna

1. Specification

A. Electrical Characteristics
Frequency	1561-1575MHz
S.W.R.	<= 2.0
Antenna Gain	4dBi
Polarization	RHCP
Horizontal Beamwidth	360°
Vertical Beamwidth	100±10°
F/B	>27dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	φ86*40mm
Radome material	ABS
Weight	0.1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)	Efficiency(%)
1561	3.7	66.1
1562	3.7	65.8
1563	3.6	65.4
1564	3.5	64.8
1565	3.4	64.1
1566	3.4	63.6
1570	3.1	62.3
1571	3.2	63.5
1572	3.2	64.9
1573	3.3	66.2
1574	3.4	67.0
1575	3.4	67.2

2.3 Radiation Pattern

Port1	3D	2D-Horizontal	2D-Vertical
1561MHz
1570MHz
1575MHz
