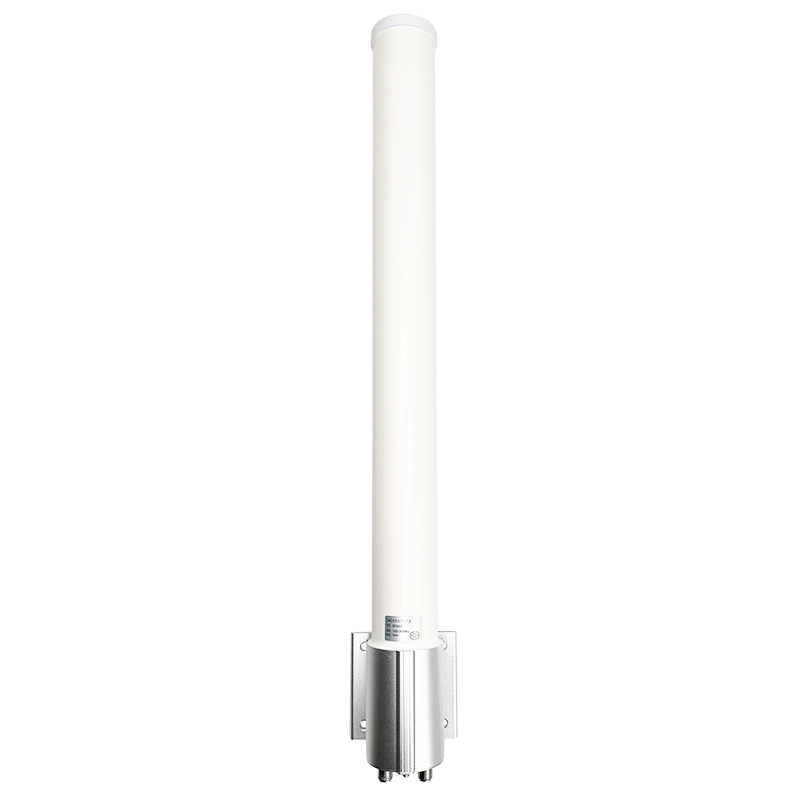

2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm

Name: 2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10826-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10826-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Frequency:	2400-2500MHz	VSWR:	<2.0
Peak Gain:	8dBi	Impedance:	50

Frequency:	2400-2500MHz
VSWR:	<2.0
Peak Gain:	8dBi
Impedance:	50

Description

2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm

1. Specification

A. Electrical Characteristics
Frequency		2400-2500MHz
VSWR		< 2.0
Efficiency		≈66%
Peak Gain		8dBi
Impedance		50 Ohm
Polarization		H+V
Horizontal Beamwidth		360°
Vertical Beamwidth		11-15°
T90(H) roundness		±5
Max Power		50W
B. Material & Mechanical
Connector Type	N-K*2
Dimension	Φ72*800±5mm
Weight	2.8Kg
Radome material	Fiberglass(White)
C. Environmental
Operation Temperature	- 45˚C ~ +85 ˚C
Storage Temperature	- 45˚C ~ +85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
2.4G 2400-2500M 8dBi dual-polarization omnidirectional WIFI antenna 72x800mm 0

2.2 Total Efficiency & Gain:

Port 1(H)			Port 2(V)
Frequency (MHz)	Gain (dBi)	Efficiency (%)	Frequency (MHz)	Gain (dBi)	Efficiency (%)
2400	6.4	68.0	2400	7.4	64.5
2410	6.3	66.8	2410	8.0	64.3
2420	6.3	67.4	2420	8.6	66.4
2430	6.3	68.6	2430	9.1	70.4
2440	6.0	67.4	2440	9.1	71.6
2450	5.7	65.1	2450	9.1	72.6
2460	5.5	65.6	2460	9.1	74.5
2470	5.3	67.4	2470	8.9	76.4
2480	4.8	66.3	2480	8.5	74.7
2490	4.2	63.7	2490	8.3	72.6
2500	3.6	62.4	2500	8.7	73.3
