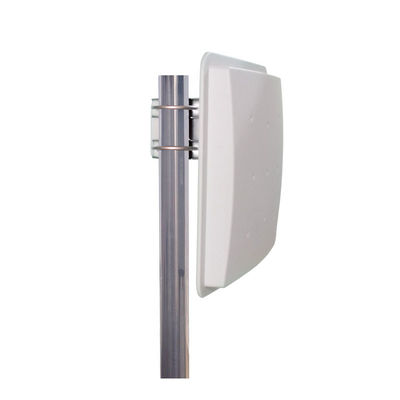

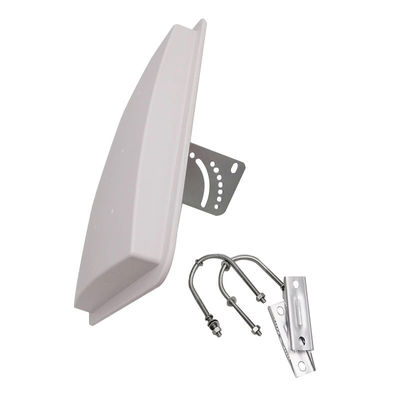

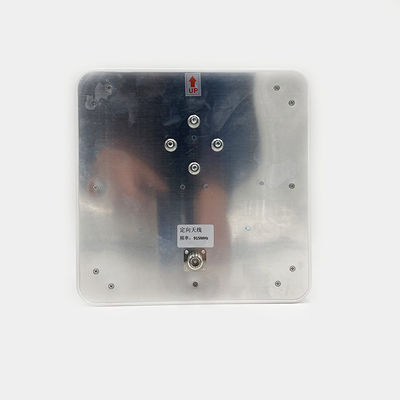

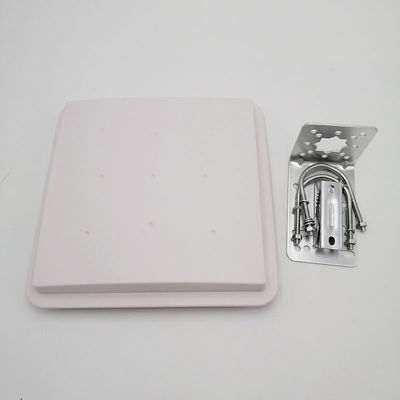

RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10553-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
Outdoor RFID Directional Antenna Flat Panel antenna 915M900-930M 9dBi 256x256x40 1. Specification A. Electrical Characteristics Frequency 900-930MHz S.W.R. 17dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Connector Type N Female connector Dimension 256*256*40mm Radome ...
Product Details
Highlight:
RFID Directional Antenna
,Directional Antenna 9dBi
,256x256x40mm Directional Antenna
Frequency:
915MHz
VSWR:
<1.5
Peak Gain:
6dBi
Impedance:
50
Product Description
Outdoor RFID Directional Antenna Flat Panel antenna 915M900-930M 9dBi 256x256x40
1. Specification
| A. Electrical Characteristics | |
| Frequency | 900-930MHz |
| S.W.R. | <= 1.5 |
| Antenna Gain | dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 70° |
| Vertical Beamwidth | 60° |
| F/B | >17dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 256*256*40mm |
| Radome material | ABS |
| Weight | 1.0Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

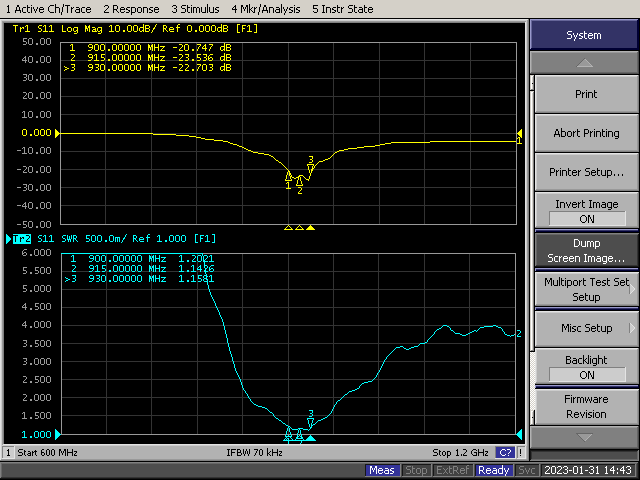

2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 900 | 9.3295 |
| 905 | 9.4348 |
| 910 | 9.622 |
| 915 | 9.7339 |
| 920 | 9.8101 |
| 925 | 9.8493 |
| 930 | 9.8035 |

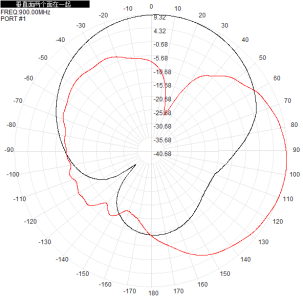

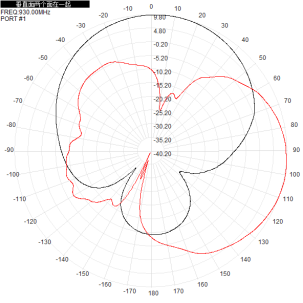

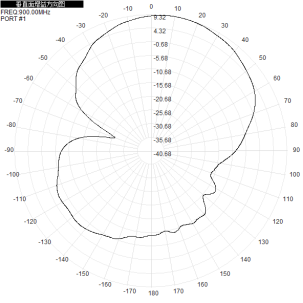

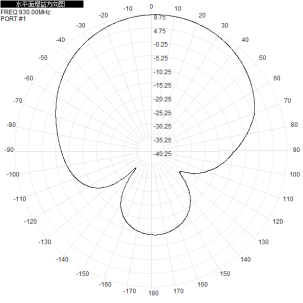

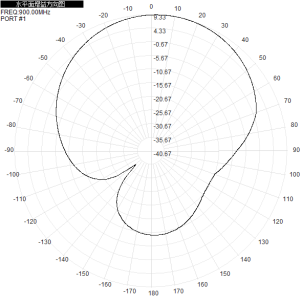

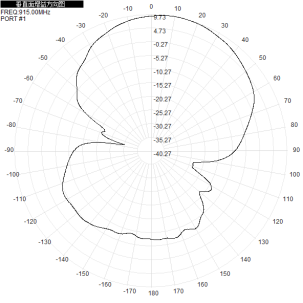

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 900MHz | |
|
|
| 915MHz | |
|
|
| 930MHz | |
|
|
