LTE GSM Outdoor Waterproof Omnidirectional
Our Product Introduction
for more products please visit us on leenzantenna.com
Basic Information
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10049-A
Minimum Order Quantity:
10
Delivery Time:
15 days
Payment Terms:
T/T
Supply Ability:
5K per day
Product Specification
Frequency:
806-960/1710-2700M
VSWR:
<2
Peak Gain:
4dBi
Impedance:
50
Highlight:
gprs antenna
,GPRS Fiberglass antenna
,4G Outdoor Waterproof Omnidirectional
More Images
Our Product Introduction
for more products please visit us on leenzantenna.com
Product Description

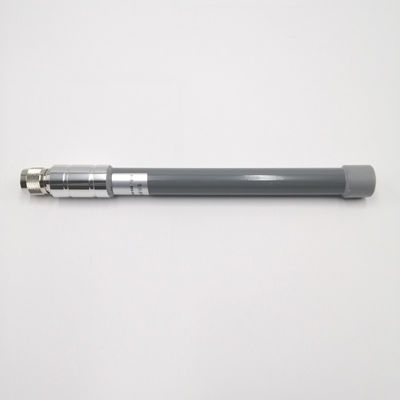

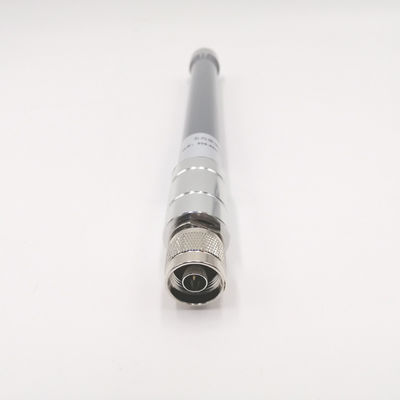

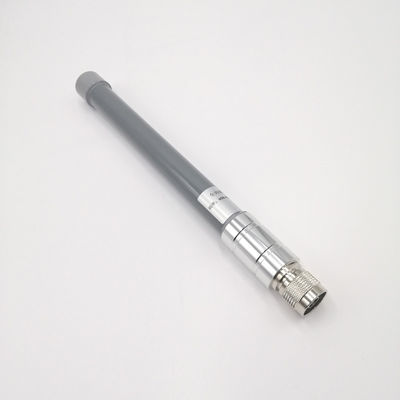

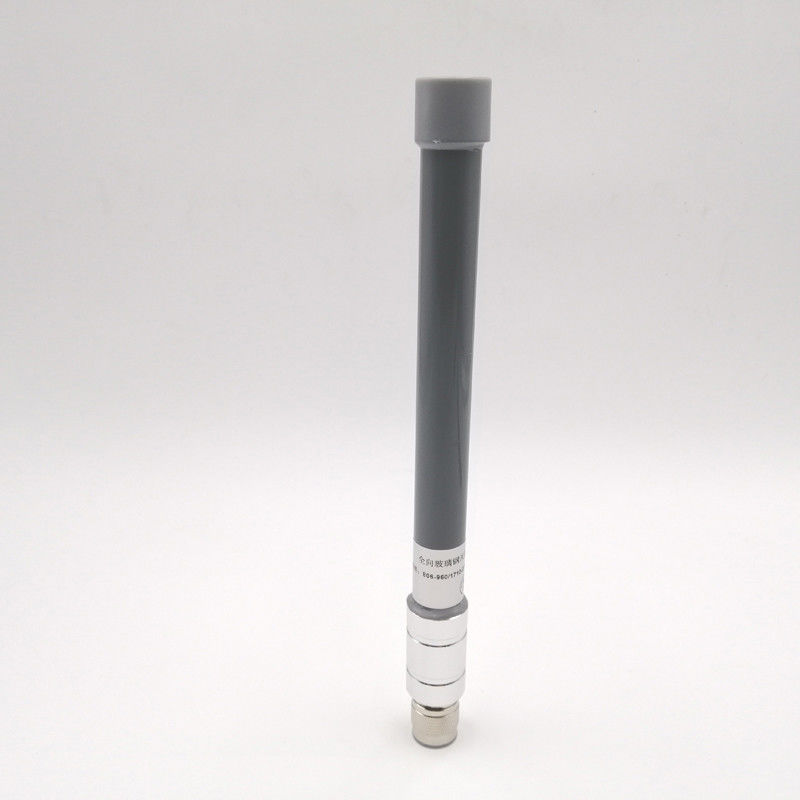

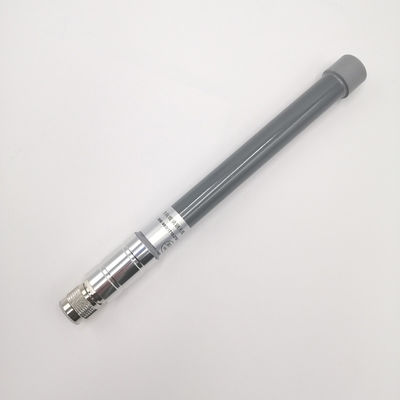

N Male 3G4G LTE GSM NB-Iot GPRS ATU DTU Omnidirectional Outdoor base station gateway Fiberglass waterproof antenna
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 698-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2 | <3.5 |
| Gain | 3dBi | 4dBi |
| Efficiency | ≈56% | ≈65% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 70±10° | 60±10° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N -Male | |
| Dimension | Φ20*250mm | |
| Weight | 0.12Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85˚C | |
| Storage Temperature | - 40 ˚C ~ + 85˚C | |
2. Antenna - S Parameter Test Data

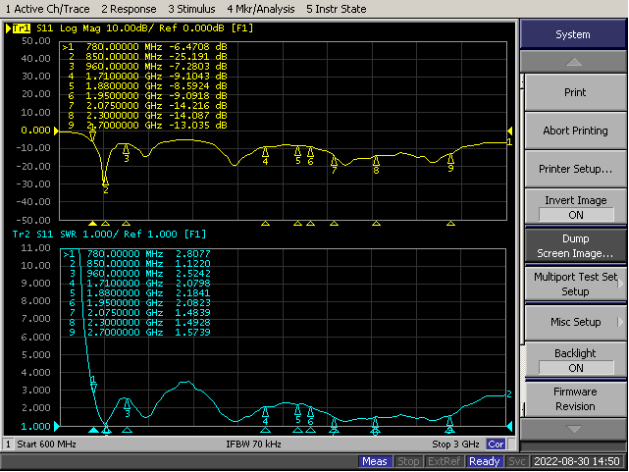

2.1 VSWR

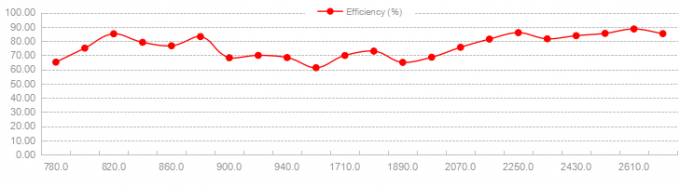

2.2 Total Efficiency & Gain:
| Frequency (MHz) | 800.0 | 820.0 | 840.0 | 860.0 | 880.0 | 900.0 | 920.0 | 940.0 | 960.0 |
| Gain (dBi) | 0.75 | 1.27 | 1.34 | 1.68 | 2.82 | 2.99 | 3.56 | 3.98 | 3.92 |
| Efficiency (%) | 75.03 | 85.12 | 79.12 | 76.68 | 83.16 | 68.25 | 69.92 | 68.37 | 61.23 |
| Frequency (MHz) | 1710.0 | 1800.0 | 1890.0 | 1980.0 | 2070.0 | 2160.0 | 2250.0 | 2340.0 | 2430.0 | 2520.0 | 2610.0 | 2700.0 |
| Gain (dBi) | 1.89 | 1.78 | 1.61 | 2.54 | 4.62 | 3.09 | 1.82 | 1.44 | 1.44 | 2.17 | 2.42 | 2.84 |
| Efficiency (%) | 69.85 | 72.93 | 65.00 | 68.63 | 75.62 | 81.38 | 85.92 | 81.60 | 83.80 | 85.41 | 88.51 | 85.22 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz |  |  |  |
| 880MHz |  |  |  |
| 960MHz |  |  |  |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |  |  |
| 2250MHz |  |  |  |
| 2700MHz |  |  |  |
| 35±10 |
