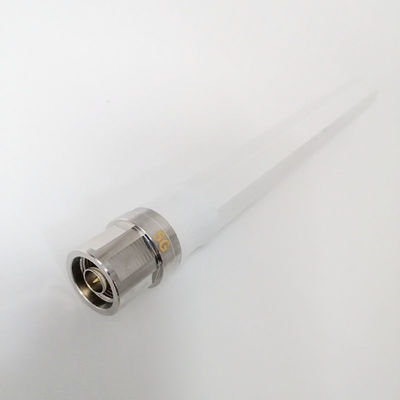

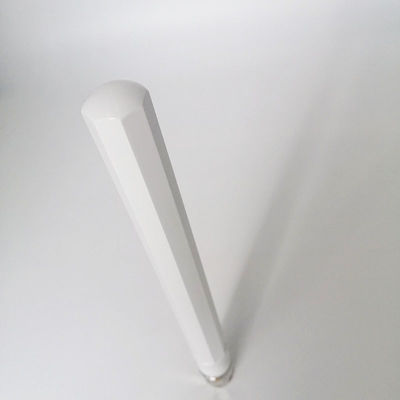

3G 4G 5G Outdoor Waterproof Omnidirectional
Our Product Introduction
for more products please visit us on leenzantenna.com
Basic Information
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10455-A
Minimum Order Quantity:
10
Delivery Time:
15 days
Payment Terms:
T/T
Supply Ability:
5K per day
Product Specification
Frequency:
617-960/1710-6000MHz
VSWR:
<4.0
Peak Gain:
5dBi
Impedance:
50
Highlight:
617-6000M omnidirectional Antenna
,omnidirectional Antenna outdoor
,617-6000M outdoor Antenna

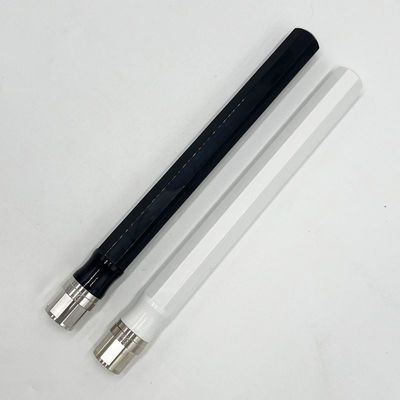

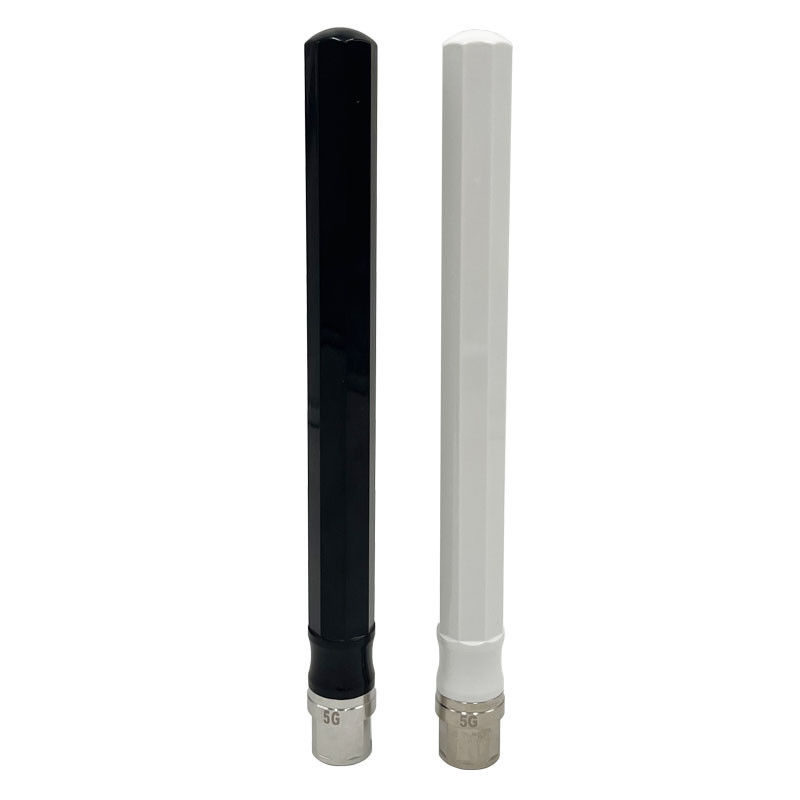

More Images
Our Product Introduction
for more products please visit us on leenzantenna.com
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 617-960/1710-6000M |
| Impedance | 50 Ohm |
| S.W.R. | <2 |
| Gain | 5dBi |
| Efficiency | ≈70% |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 48-61° |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Male |
| Dimension | Φ24*240mm |
| Weight | 0.1Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

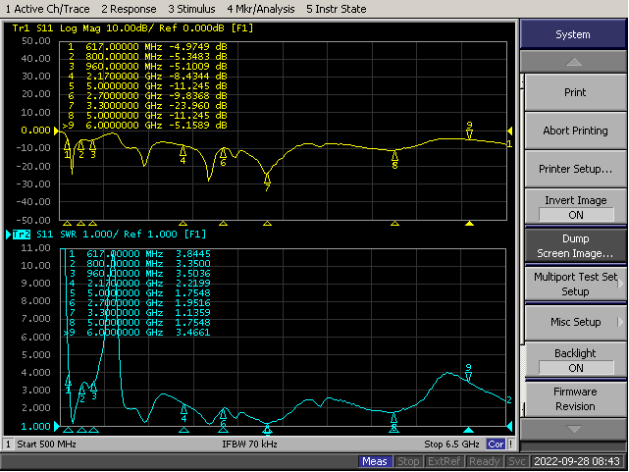

2.1 VSWR

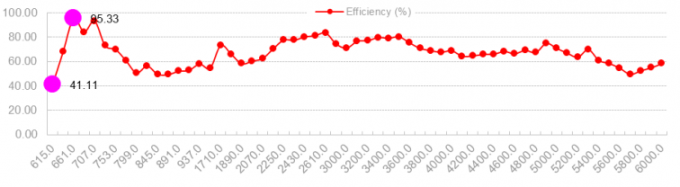

2.2 Total Efficiency & Gain:
| Frequency (MHz) | 615 | 638 | 661 | 684 | 707 | 730 | 753 | 776 | 799 | 822 | 845 | 868 | 891 | 914 | 937 | 960 |
| Gain (dBi) | -1.05 | 1.24 | 2.39 | 1.82 | 2.11 | 1.10 | 0.73 | 0.35 | -0.02 | 0.48 | 0.18 | 0.42 | 1.22 | 2.06 | 3.16 | 3.49 |
| Efficiency (%) | 41.11 | 68.01 | 95.33 | 84.33 | 93.23 | 73.23 | 70.07 | 60.80 | 50.84 | 56.58 | 49.88 | 49.52 | 52.26 | 53.02 | 58.26 | 54.79 |
| Frequency (MHz) | 1710 | 1800 | 1890 | 1980 | 2070 | 2160 | 2250 | 2340 | 2430 | 2520 | 2610 | 2700 |
| Gain (dBi) | 4.59 | 1.96 | 0.72 | 0.87 | 1.04 | 1.97 | 2.32 | 2.64 | 2.99 | 3.67 | 4.33 | 3.83 |
| Efficiency (%) | 73.27 | 66.27 | 58.41 | 60.53 | 62.74 | 70.61 | 77.78 | 77.61 | 80.34 | 81.31 | 83.53 | 74.49 |
| Frequency (MHz) | 3000 | 3100 | 3200 | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 | 4100 | 4200 | 4300 | 4400 | 4500 |
| Gain (dBi) | 1.36 | 1.76 | 2.32 | 3.56 | 4.60 | 4.94 | 4.97 | 4.69 | 4.36 | 4.21 | 4.07 | 4.76 | 4.22 | 5.05 | 5.42 | 5.36 |
| Efficiency (%) | 71.26 | 76.72 | 77.24 | 79.84 | 79.25 | 80.38 | 75.40 | 70.94 | 69.12 | 67.85 | 69.00 | 64.55 | 64.78 | 66.07 | 66.20 | 68.43 |
| Frequency (MHz) | 4600 | 4700 | 4800 | 4900 | 5000 | 5100 | 5200 | 5300 | 5400 | 5500 | 5600 | 5700 | 5800 | 5900 | 6000 |
| Gain (dBi) | 5.12 | 5.27 | 5.17 | 4.81 | 4.22 | 4.18 | 4.33 | 4.67 | 4.05 | 3.85 | 3.41 | 2.89 | 3.68 | 4.00 | 4.51 |
| Efficiency (%) | 66.56 | 69.40 | 67.52 | 75.09 | 70.86 | 67.01 | 63.70 | 69.98 | 61.14 | 58.62 | 54.75 | 49.72 | 52.69 | 55.13 | 58.49 |

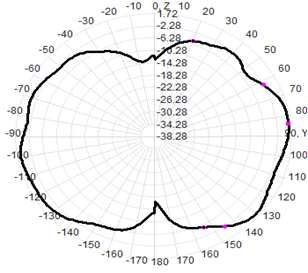

2.3 Radiation Pattern
|
3D |
2D-Horizontal |
2D-Vertical |
|
|
615MHz |
|
 |
 |
| 684MHz |  |
 |
 |
| 730MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 822MHz |  |
 |
 |
| 868MHz |  |
 |
 |
| 960MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz |  |
 |
 |
| 2160MHz |  |
 |
 |
| 2700MHz |  |
 |
 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 3300MHz |  |
 |
 |
| 4800MHz |  |
 |
 |
| 6000MHz |  |
 |
 |
